2 . SLOW-BLOW TYPE









65TS
CERAMIC TUBE FUSE (Slow-blow)





  TEST SPECIFICATION

% of Ampere Rating

Openning Time

110%

4 hours, Minimum

135%

1 hour, Maximum

200%

5 sec~2 Minutes

  UL File No.E236987
    65TS  125V  1A-15A(Listed)
                     18A-20A(Recongnized)
             250V  1A-15A(Listed)
                     18A-20A(Recongnized)

  CSA Certified file No.
    65TS  125V  1A-15A(Listed)
             250V  1A-15A(Listed)

  Interrupting Rating

10,000 amperes at  125V
AC (10A-20A)

200 amperes at 250V
AC (18A-20A)

200 amperes at       250V
AC (10A)

750 amperes at 250V
AC (12A-15A)

RATINGS

65TS Cat. No

Ampere

    010 H/L

    013 H/L

    015 H/L

    016 H/L

    020 H/L

    025 H/L

    030 H/L

    032 H/L

    035 H/L

    040 H/L

    050 H/L

    060 H/L

    063 H/L

    070 H/L

    080 H/L

    100 H/L

    120 H/L

    130 H/L

    150 H/L

    180 H/L

    200 H/L

    1A

    1.25A

    1.5A

    1.6A

    2A

    2.5A

    3A

    3.15A

    3.5A

    4A

    5A

    6A

    6.3A

    7A

    8A

    10A

    12A

    13A

    15A

    18A

    20A

H denotes for 250V / L denotes for 125V

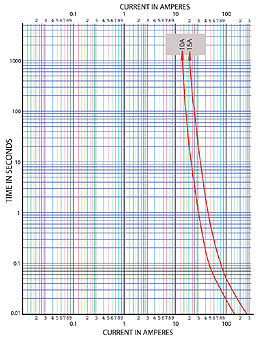

TIME-CURRENT CHARACTERISTICS
