TEST
SPECIFICATION
|
%
of
Ampere
Rating
|
Ampere
Rating
|
Openning
Time
|
|
150%
|
1~3.15
|
60
minutes,
Minimum
|
|
4~6.3
|
60
minutes,
Minimum
|
|
210%
|
1~3.15
|
30 minutes,
Maximum
|
|
4~6.3
|
30 minutes,
Maximum
|
|
275%
|
1~3.15
|
1
sec.,Min.;
80
sec.
Max.
|
|
4~6.3
|
1
sec.,Min.;
80
sec.
Max.
|
|
400%
|
1~3.15
|
.095
sec.,Min.;
5
sec.
Max.
|
|
4~6.3
|
.150 sec.,Min.;
5
sec.
Max.
|
|
1000%
|
1~3.15
|
.010
sec.,Min.;
1
sec.
Max.
|
|
4~6.3
|
.020 sec.,Min.;
1
sec.
Max.
|
VDE
File No.40008066
50CT
1A-12A
UL
File No.E236987
50CT
1A-12A(Recongnized)
CSA
Certified file No.1438084
50CT
1A-6.3A(Recongnized)
Breaking
Capacity
1500A
RATINGS
|
50CT
Cat.
No
|
Ampere
|
Max.
Voltage
drop.
mV
|
|
010 H
013 H
016 H
020 H
025 H
032 H
040 H
050 H
063 H
080 H
010 H
012 H |
1A
1.25A
1.6A
2A
2.5A
3.15A
4A
5A
6.3A
8A
10A
12A |
250
250
200
190
180
140
100
100
100
100
100
100
|
H denotes for 250V
|

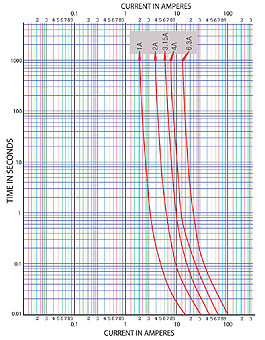

TIME-CURRENT
CHARACTERISTICS
|
