1 . FAST ACTING TYPE





22M
MICRO FUSE (Fast Acting Type)



  TEST SPECIFICATION

% of Ampere Rating

Openning Time

100%

4 hours, Minimum

150%

 10 min, Maximum

200%

1 min, Maximum

  UL File No.
    22M  125V  500mA-5A(Listed)

  CSA Certified file No.
    22M  125V  500mA-5A(Listed)

  RATINGS

Cat. No

Ampere

    0500 L

    0600 L

    0630 L

    0750 L

    0800 L

    010 L

    013 L

    015 L

    016 L

    020 L

    025 L

    030 L

    032 L

    035 L

    040 L

    050 L

    500mA

    600mA

    630mA

    750mA

    800mA

    1A

    1.25A

    1.5A

    1.6A

    2A

    2.5A

    3A

    3.15A

    3.5A

    4A

    5A

L denotes for 125V

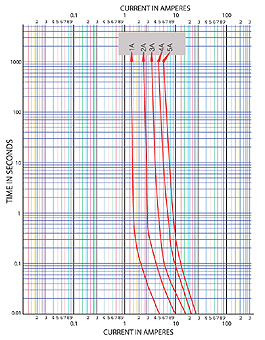

TIME-CURRENT CHARACTERISTICS
