1 . FAST ACTING TYPE

41N/42N
GLASS TUBE FUSE (Fast Acting Type)

TEST SPECIFICATION

% of Ampere Rating	Openning Time
100%	4 hours, Minimum
135%	1 hour, Maximum
200%	2 min, Maximum

  UL File No.
    41N/42N 125V 300mA-3.5A(Listed)
                           4A-6.3A(Recongnized)
    41N/42N 250V 300mA-3.5A(Listed)
                           4A-6.3A(Recongnized)

  CSA Certified file No.
    41N/42N 125V 300mA-3.5A(Listed)
                           4A-6.3A(Recongnized)
    41N/42N 250V 300mA-3.5A(Listed)
                           4A-6.3A(Recongnized)

Interrupting Rating

10,000 amperes at 125V AC (300mA-3.5A)	500 amperes at 125V AC (4A-6.3A)
35 amperes at 250V AC (300mA-1A)	100 amperes at 250V AC (1.2A-6.3A)

RATINGS

Cat. No	Ampere
0300 H/L 0315 H/L 0350 H/L 0375 H/L 0400 H/L 0500 H/L 0600 H/L 0630 H/L 0750 H/L 0800 H/L 010 H/L 013 H/L 015 H/L 016 H/L 020 H/L 025 H/L 030 H/L 032 H/L 035 H/L 040 H/L 050 H/L 060 H/L 063 H/L	300mA 315mA 350mA 375mA 400mA 500mA 600mA 630mA 750mA 800mA 1A 1.25A 1.5A 1.6A 2A 2.5A 3A 3.15A 3.5A 4A 5A 6A 6.3A

H denotes for 250V / L denotes for 125V

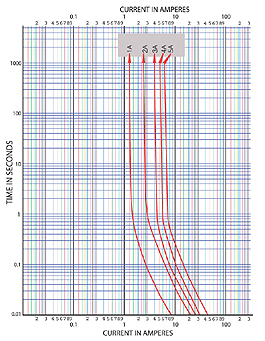

TIME-CURRENT CHARACTERISTICS
