5 . SURFACE MOUNT FUSE









SMF101





  TEST SPECIFICATION

% of
Ampire
Rating

Ampire
Rating

Openning Time

100%

300mA ~
15A

4 hours Minimum

200%

300mA ~
10A

5 seconds,
Maximum

12A~15A

20 seconds,,
Maximum

  INTERRUPTING RATINGS

300mA~8A

50 amperes at 125V  AC/DC
300 amperes at 32V  DC

10A

35 amperes at 125V  AC/
50 amperes at 125V  DC

12A/15A

50 amperes at 65V  AC/DC
300 amperes at 24V  DC

 RATINGS

50T Cat. No

Ampere

0030 L

0500 L

0600 L

0630 L

0750 L

0800 L

010 L

013 L

015 L

016 L

020 L

025 L

030 L

032 L

035 L

040 L

050 L

063 L

080 L

010 L

012 L

015 L

    300mA

    500mA

    600mA

    630mA

    750mA

    800mA

    1A

    1.25A

    1.5A

    1.6A

    2A

    2.5A

    3A

    3.15A

    3.5A

    4A

    5A

    6.3A

    8A

    10A

    12A

    15A

H denotes for 250V

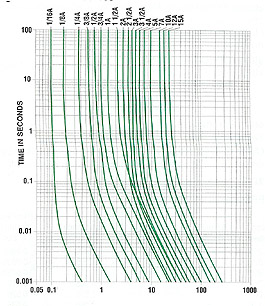

CURRENT IN AMPERES
