1 . FAST ACTING TYPE









61NM/62NM
GLASS TUBE FUSE (Fast Acting Type)





  TEST SPECIFICATION

% of Ampere Rating

Openning Time

110%

4 hours, Minimum

135%

1 hour, Maximum

200%

2 min, Maximum

  UL File No.
    61NM/62NM  125V  300mA-10A(Listed)
                                12A-15A(Recongnized)
    61NM/62NM  250V  300mA-10A(Listed)
                                12A-15A(Recongnized)

  CSA Certified file No.
    61NM/62NM  125V  300mA-10A(Listed)
                                12A-15A(Recongnized)
    61NM/62NM  250V  300mA-10A(Listed)
                                12A-15A(Recongnized)

  Interrupting Rating

10,000 amperes  at 125V
AC (300mA-10A)

500 amperes at 125V
AC (12A-15A)

35 amperes at 250V
AC (1.2A-3.5A)

100 amperes at 250V
AC (4A-15A)

RATINGS

61NM, 62NM
Cat. No

Ampere

    0300 H/L

    0315 H/L

    0350 H/L

    0375 H/L

    0400 H/L

    0500 H/L

    0600 H/L

    0630 H/L

    0750 H/L

    0800 H/L

    010 H/L

    013 H/L

    015 H/L

    016 H/L

    020 H/L

    025 H/L

    030 H/L

    032 H/L

    035 H/L

    040 H/L

    050 H/L

    060 H/L

    063 H/L

    070 H/L

    080 H/L

    100 H/L

    120 H/L

    150 H/L

    300mA

    315mA

    350mA

    375mA

    400mA

    500mA

    600mA

    630mA

    750mA

    800mA

    1A

    1.25A

    1.5A

    1.6A

    2A

    2.5A

    3A

    3.15A

    3.5A

    4A

    5A

    6A

    6.3A

    7A

    8A

    10A

    12A

    15A

H denotes for 250V / L denotes for 125V

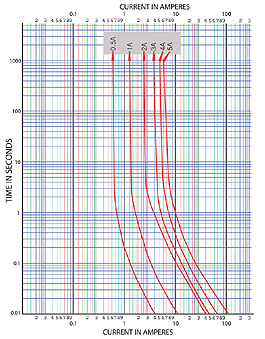

TIME-CURRENT CHARACTERISTICS
